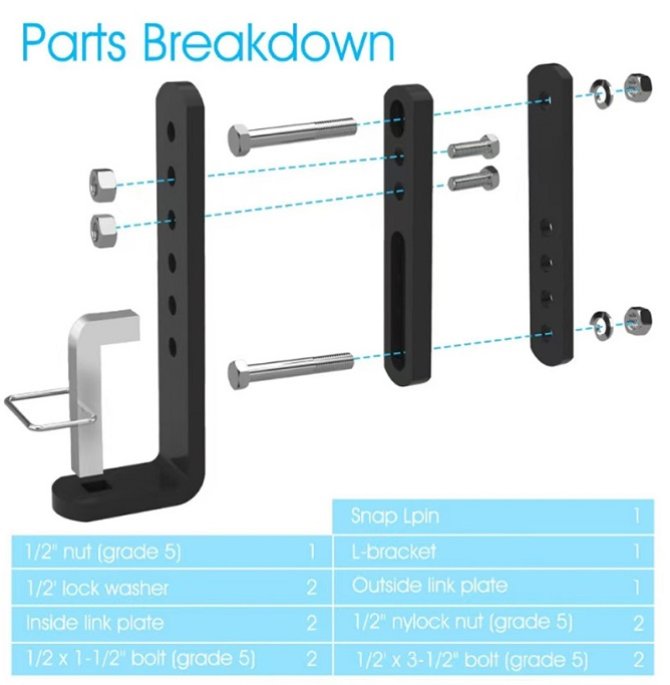

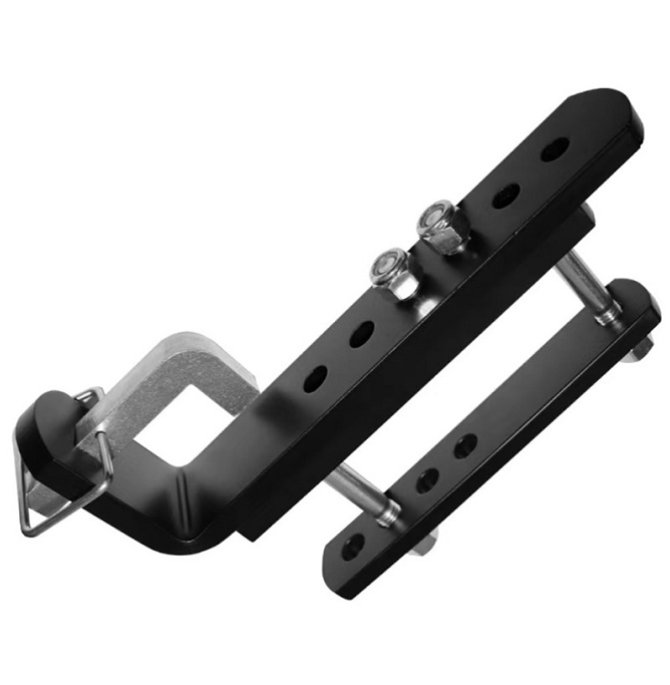

1. Main Body: Thickened black-coated steel plate, offering high strength, rust resistance, and wear resistance; the plate features multiple rows of adjustment holes to accommodate trailer frames of various heights and specifications.

2. Bolt Fasteners: High-strength bolts + lock nuts, used to securely clamp the bracket to the trailer frame.

3. U-shaped hook + safety retaining spring (R-type pin): Used to attach the weight distribution (WDH) bar; the R-type pin prevents the bar from accidentally detaching, ensuring driving safety.

4. Silver U-shaped clamps: These clamp onto the trailer frame and, in conjunction with the mounting plate, lock into place to enable a weld-free installation.

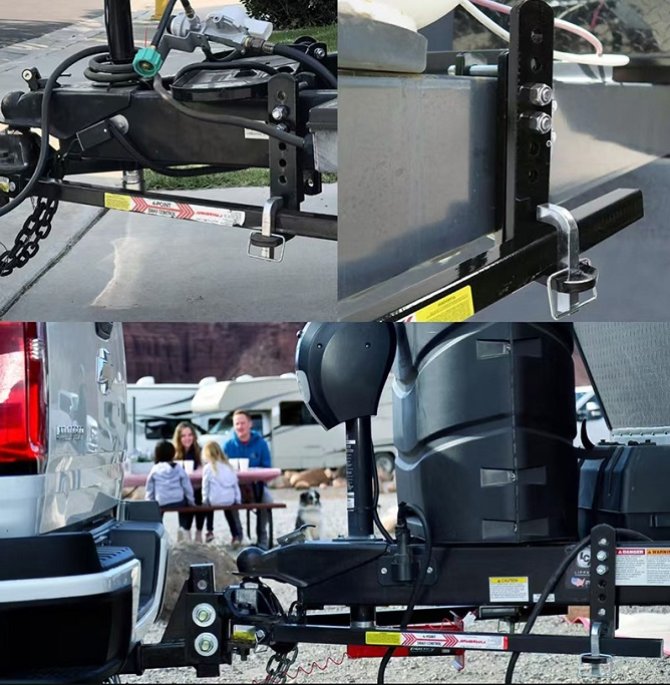

Purpose: Used in conjunction with a weight-distribution hitch system:

- When towing a trailer (RV, travel trailer), it redistributes the downward force exerted by the tow vehicle onto the trailer’s axles, reducing the load on the tow vehicle;

- Reduces side-to-side sway of the trailer during high-speed driving, improving trailer stability;

- No welding required; clamps directly onto the sides of the trailer frame. These are replacement parts and are used in pairs (typically one on the left and one on the right).

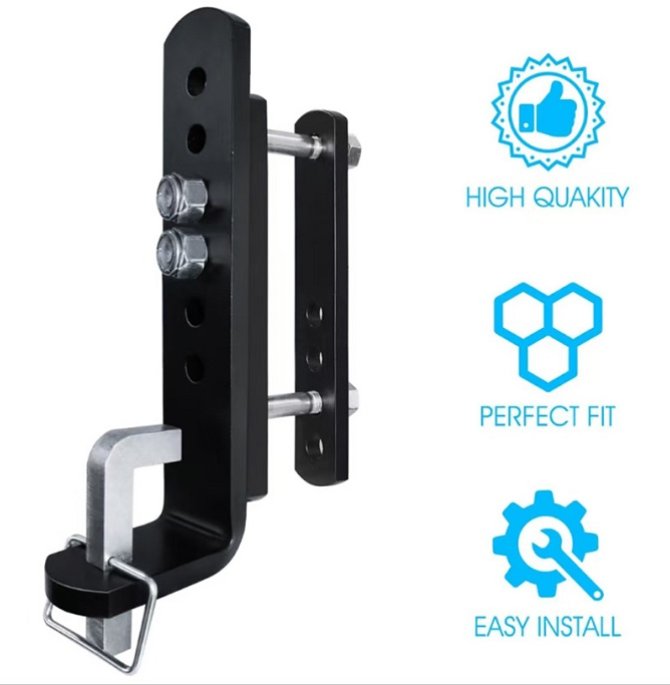

Key Selling Points

Heavy-duty carbon steel with black powder-coated finish for corrosion and rust resistance

Multi-position adjustable holes to fit 3/4-, 5-, and 6-inch trailer frames

Includes an R-type safety pin to prevent detachment

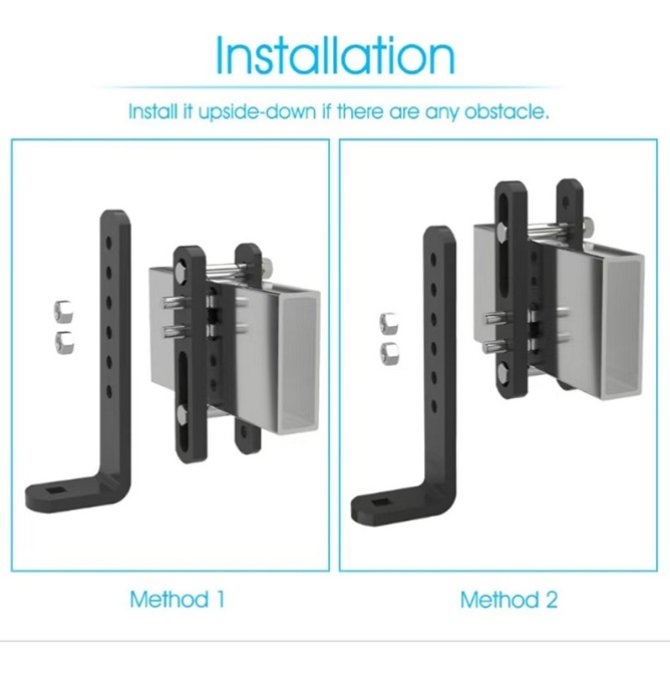

Clamp-on installation—no welding required—for easy installation and removal

Designed for weight distribution and anti-sway stabilization in RV trailers
