Color: White
Material: Stainless steel

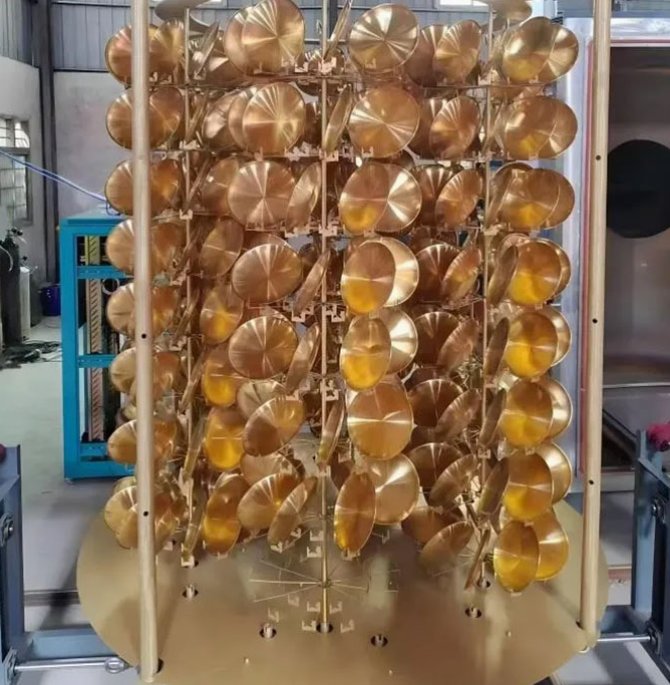

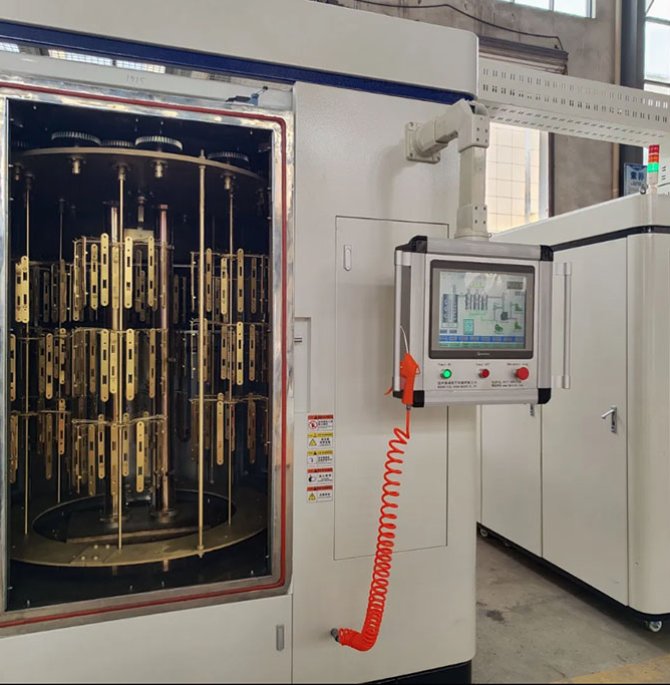

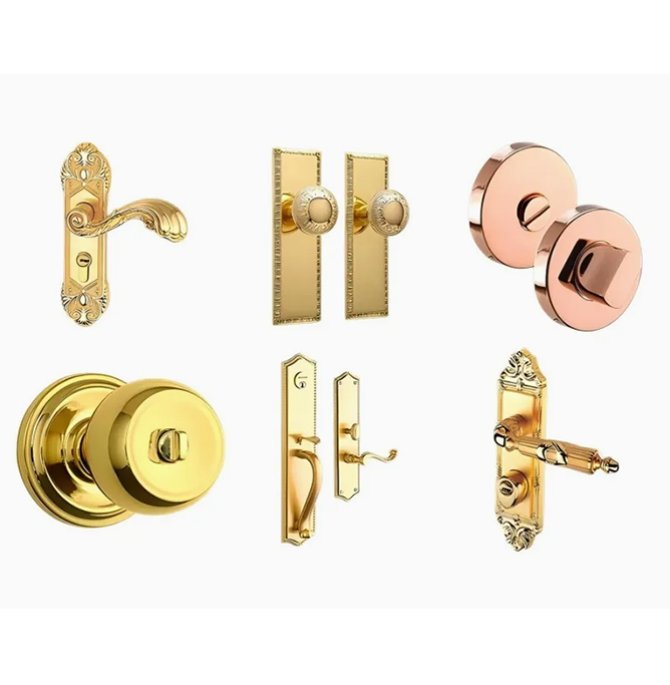

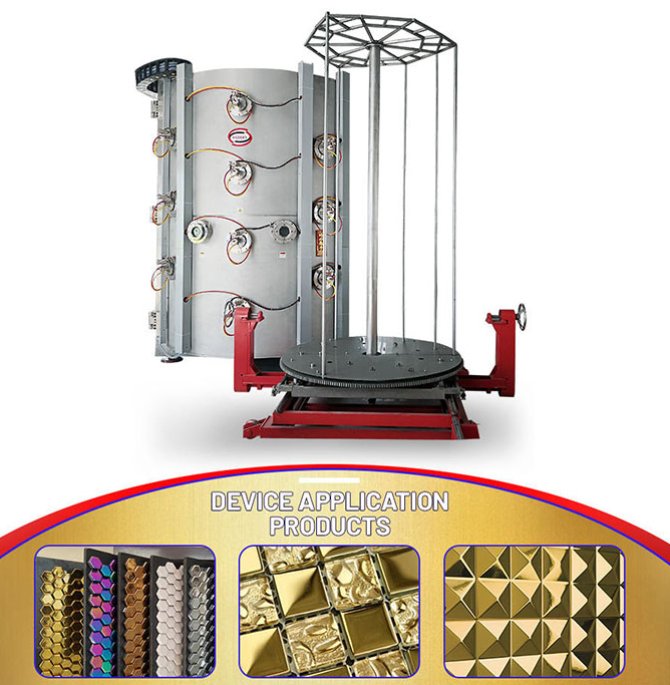

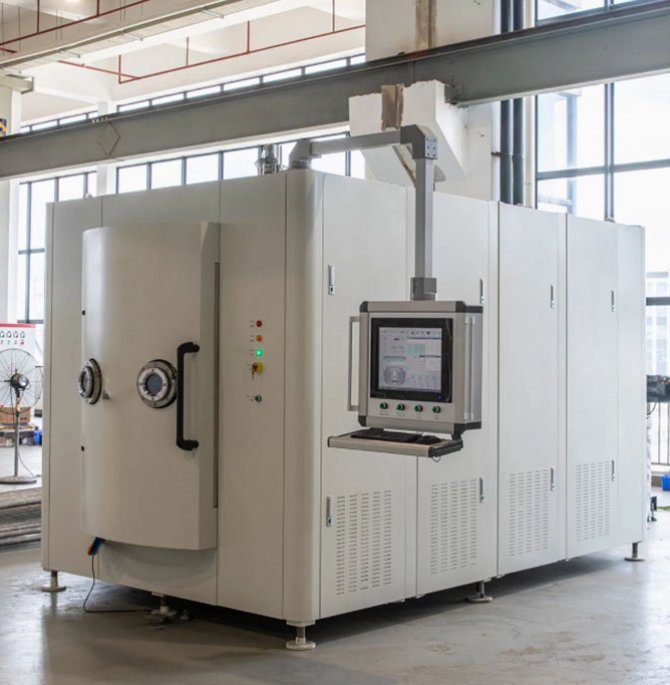

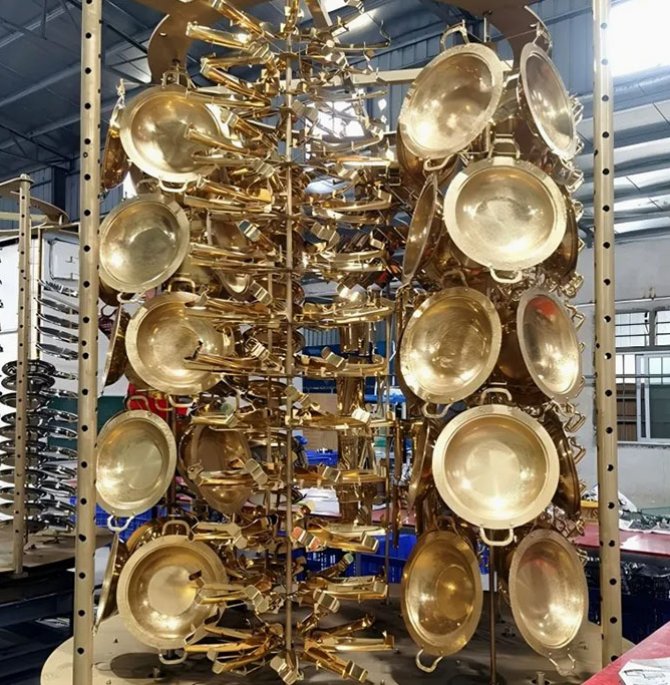

This equipment is used for coating steel or alloy jewelry with IPG, IPS, IPR, IPB, rose gold, platinum, and other coatings. It is an environmentally friendly device, producing no exhaust gas or wastewater. The main features of the IPG PVD coating machine are low cost and stronger coating adhesion than traditional electroplating. MF magnetron sputtering coating machines are commonly used for jewelry coating. Medium-frequency sputtering vacuum coating machines mainly integrate MF magnetron sputtering and arc ion evaporation coating technologies, combined with an ion source and pulsed bias voltage. The coating process is fully automated.
Product Parameters
| Mode Dimension | JTL-900 | JTL-1100 | JTL-1300 | JTL-1600 |
| Φ900*1000mm | Φ1100*1000mm | Φ1300*1200mm | Φ1600*1200mm | |
| Coating mode and main confirguration | 3 electric-arc+2 pairs of plane rectangular cathode | 6 electric-arc+2 pairs of cylindrical cathode | 5 electric-arc+4 pairs of cylindrical cathode | 6 electric-arc+8 pairs of cylindrical cathode |
| Film Types | Metal films,Dielectric films,Compound films,Reaction films,Muti-layer function films | |||
| Power source | Electric arc power supply,DC magnetron power supply,MF magnetron power supply.Pulse bias voltage power supply.ion source power supply. | |||
| Process gas control | Quality flowmeter + electromagnetism ceramic valve | |||

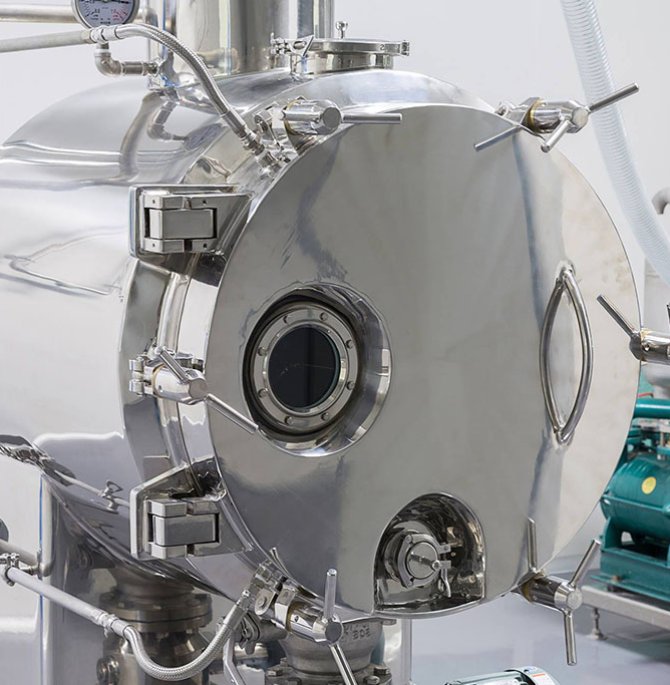

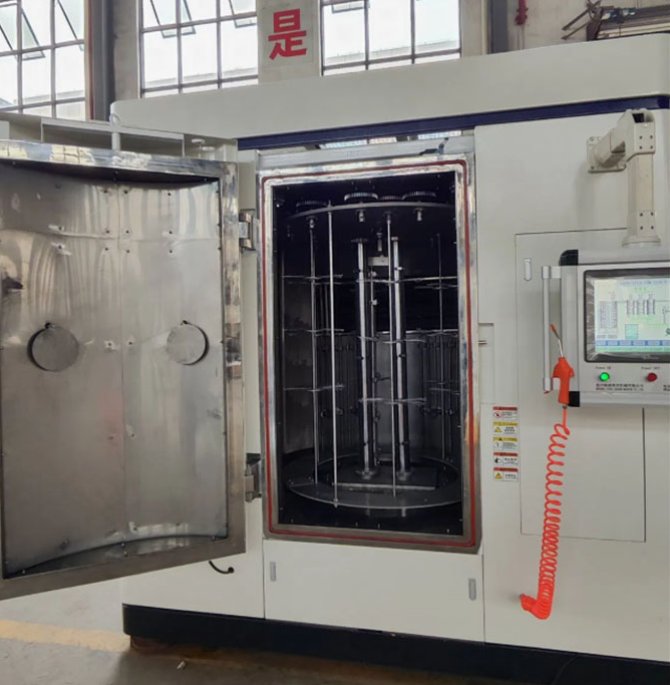

| Vacuum chamber structure | Vertical single(side) door, pump system postposition, double water-cooling | |||

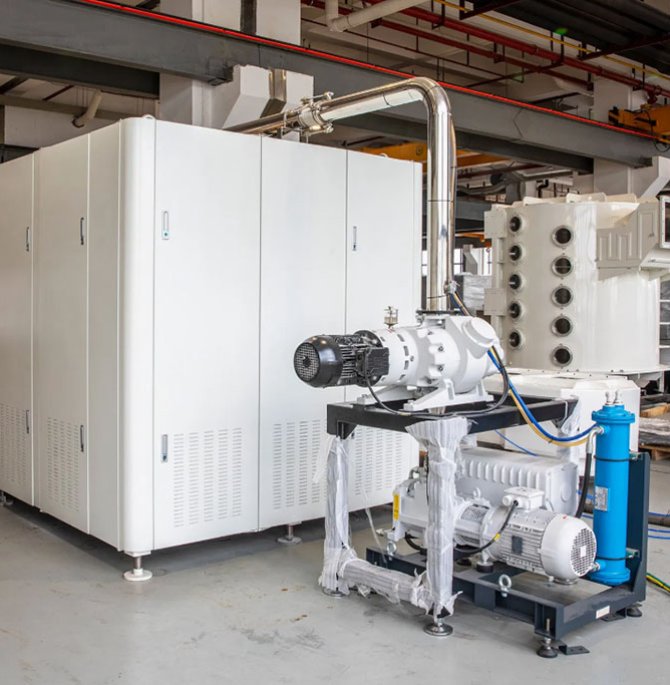

| Vacuum system | Molecule pump(diffusion pump)+Roots pump +Mechanical pump (8.0*10 -4 Pa) | |||
| Pumping speed | Pumping time less than 15 minutes ,from atmospheric pressure to 310 -3 Pa | |||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | |||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa | |||
| Control mode | Full automation control system PC+PLC/PC+HMI | |||
| Remark | We can design the dimension of the equipment according to customers special technique requirement. | |||
